Skutt KM822-3 Kiln Master Kiln
All kilns ship free!
Smaller kilns ship via UPS Ground and larger kilns ship via truck.
Skutt KMT Touchscreen Controller !
After years of refinement Skutt Kilns is rolling out the new Touchscreen Controller...and it is NICE!
After over two years of research, development and rigid testing, the new Touchscreen controller is now available on new Skutt KilnMaster (KMT) and GlassMaster Kilns (GMT). You can even retrofit existing units with an easy to install Upgrade Kit specifically made for the GlassMaster GMT or KilnMaster KMT.

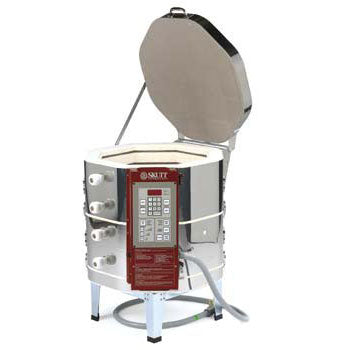

About the Skutt KM822-3
Perfect Small Studio Kiln– Easy to Load
Part of the New 22” Series, the KM822-3 offers 4.5” more height then the KM818. This doesn’t sound like much until you need to add another shelf or want to fire a taller pot or sculpture. Fire a 18” tall piece with all the proper clearances. The 22” height coupled with its Cone 10 capability and small space requirements make it a perfect kiln for the home studio.It comes equipped with the precise control of the KilnMaster Controller making it easy and convenient to operate.
The Skutt KM-822-3 kiln includes the KilnMaster controller built in. Other standard features include:
- 2 Year limited warranty, elements excluded
- 3" brick standard for increased efficiency
- Encapsulated Type K thermocouple
- Crimp on connectors on feeder wires
- Larger, swing away air cooled switch box
- Multi-sided design
- Stainless steel jacket
- Sectionalized construction
- Two lift handles on each section
- Sealed, dust free lid with full-floating hinge
- Two types of exposed, pinned elements for optimum balance
- Reversible top and bottom slabs
- Stand included
- Peep plugs included
- UL Listing
Please note, 8, 7, 6 and 4 sided kilns do not include a lid lifter system. The lid is not heavy enough to require the extra expense.
|Electrical Specifications - Skutt KM822-3|
|Phase||Voltage||Amps||Max. Cone||Cu. Ft.||Opening||Depth||Shipping Weight||Copper Wire Size||Breaker Size||NEMA Receptacle|
|1||240||33.4||10 ||2.9||16.5"||22"||180 ||8||50||6-50 |
|1||208||38.5||10 ||2.9||16.5"||22"||180||8||50||6-50 |

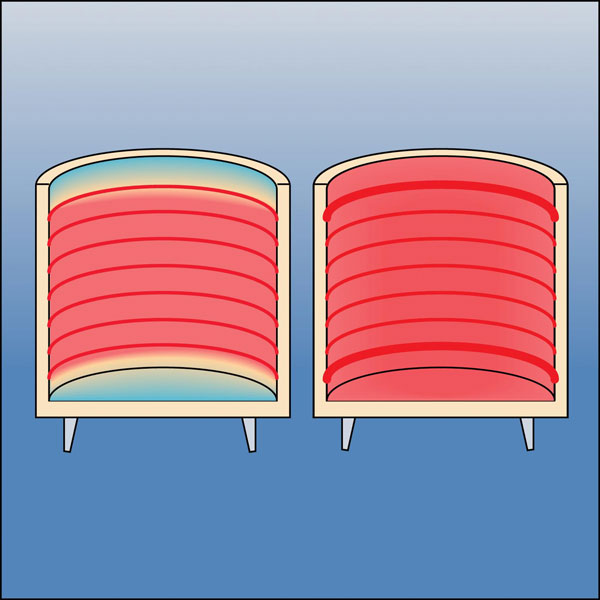

|Skutt Kiln Cutaway||Larger Skutt Kilns use balanced |
elements top to bottom so your
kiln fires more evenly.

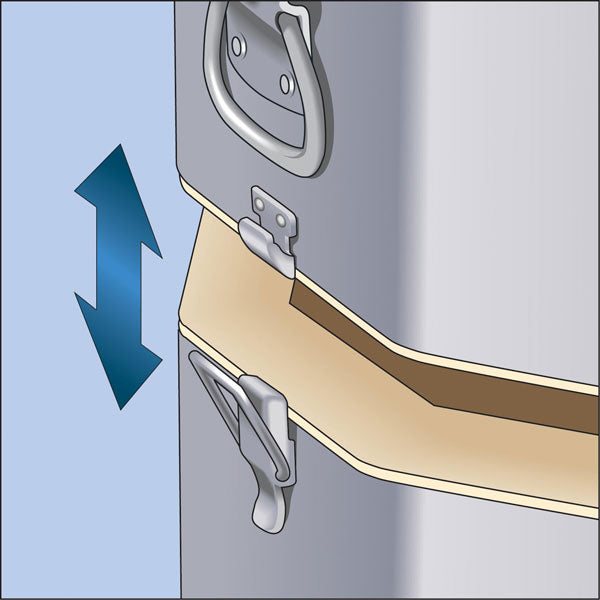

|Skutt Kilns use a sectional |
design to make them easy to
move and disassemble.

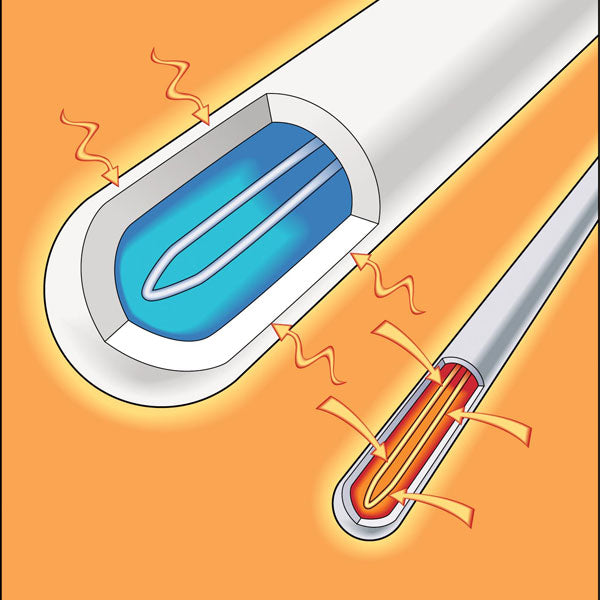

|Skutt Kilns use a Type K |
(Type S Upgrade Available)

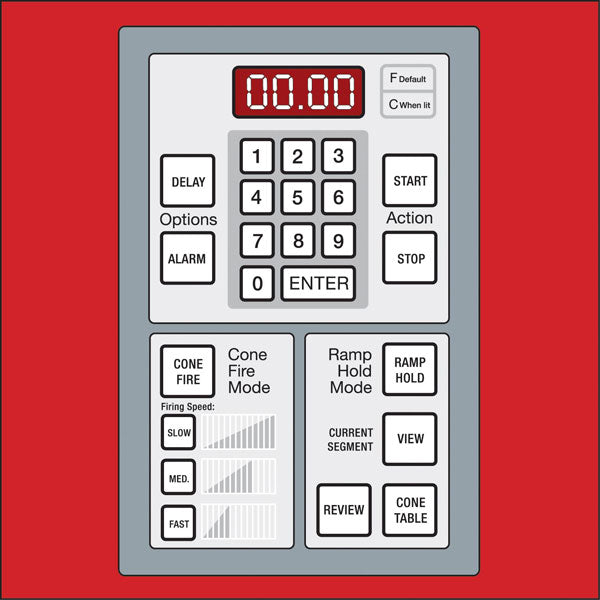

|Skutt Kilns use a Bartlett |
controller that is easy to use
and has built in programs to
get you firing right away.
|Plan your kiln room design and |
layout. If you need additional information
take a look at the PDF downloads above
for a link to the Skutt Kiln catalog and
the Architectural Specifications.
