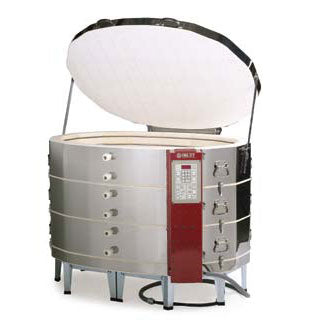

Skutt KM1627-3 PK LF Oval Kiln Master Kiln
- Free Shipping
- Kiln Shipping
All kilns ship free!
Smaller kilns ship via UPS Ground and larger kilns ship via truck.
Skutt KMT Touchscreen Controller !
After years of refinement Skutt Kilns is rolling out the new Touchscreen Controller...and it is NICE!
After over two years of research, development and rigid testing, the new Touchscreen controller is now available on new Skutt KilnMaster (KMT) and GlassMaster Kilns (GMT). You can even retrofit existing units with an easy to install Upgrade Kit specifically made for the GlassMaster GMT or KilnMaster KMT.
About the Skutt KM1627 Low Fire
POWER - DURABILITY - EASE.
The Skutt Oval was designed with 3 main objectives in mind: make it powerful enough to handle heavy loads, make it durable enough to withstand the rigorous demands of high volume production and make it easy to operate and maintain.
Powerful - Although the low fire version of the KM1627 kiln only fires to Cone 1, it has plenty of power to fire dense loads and is perfect for firing earthenware in heavy production enviroments. The lower temperature rating on this kiln is a result of the lower amperage requirements. The lower amperage requirements enable this kiln to be installed on electrical systems that will not support the more powerful KM1627 Cone 10 kiln.
Durability - Due to their enormous spans oval kilns have a history of cracking lids and slabs. Skutt solved this problem by introducing the first fiber lid oval kiln with a fiber insert in the base. The electrical components and wiring are industrial quality to minimize downtime and boost performance.
Ease - The light fiber lid coupled with our innovative lid brace design make opening and closing the kiln a one handed operation. The touchpad has been moved higher for easy access to programming. Like all Skutt kilns the new ovals are sectional making them easy to move, repair and disassemble for loading large pieces. The entire kiln can be assembled and disassembled in less then 10 minutes using only a screwdriver. The new busbar element connection design makes changing elements a breeze.
• KilnMaster Controller
• Rigid fiber Lid, far lighter than brick lids
• One handed lid prop design
• Fiber slab insert
• 12 leg stand with support plate
• Sectional design for ease in setup and moving
• 1 encapsulated type K thermocouples
• 4 handles per section
• Mercury relays
• Busbar element connection system
• Industrial gauge wiring
|Electrical Specifications - Skutt KM1627-3PK|
|Phase||Voltage||Amps||Max. Cone||Cu. Ft.||Opening||Depth||Shipping Weight||Copper Wire Size||Breaker Size||Receptacle|
|1||240||68||1||18.5||46" x 30.75"||27||535||4||90||Direct Wire|
|1||208||69||1||18.5||46" x 30.75"||27||535||4||90||Direct Wire|
|3||240||46 ||1||18.5||46" x 30.75"||27"||535||6||60||Direct Wire|
|3||208||47 ||1 ||18.5||46" x 30.75"||27"||535||6||60||Direct Wire|

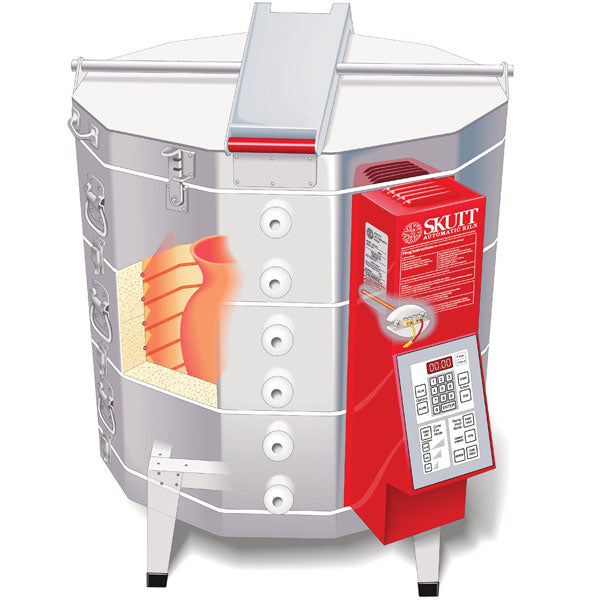

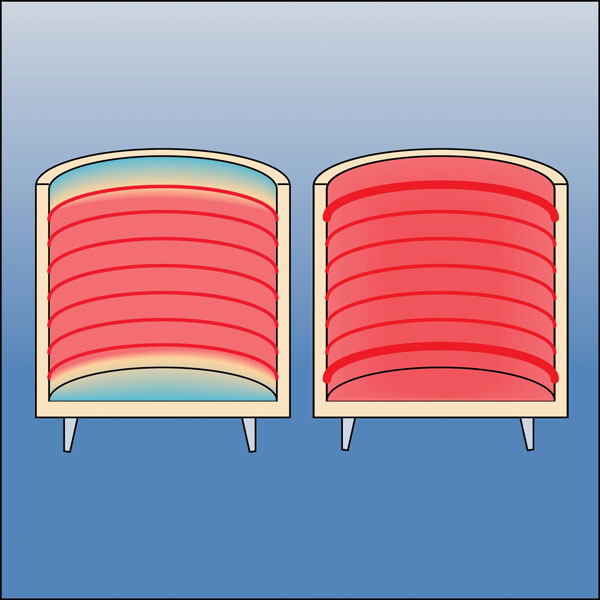

|Skutt Kiln Cutaway||Larger Skutt Kilns use balanced |
elements top to bottom so your
kiln fires more evenly.

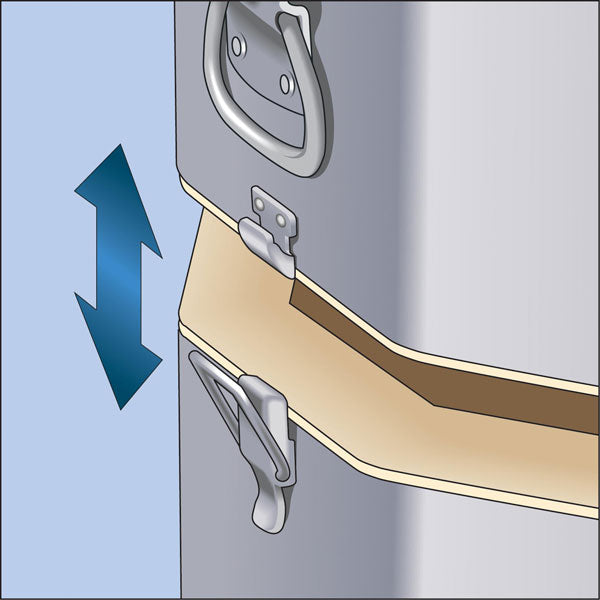

|Skutt Kilns use a sectional |
design to make them easy to
move and disassemble.

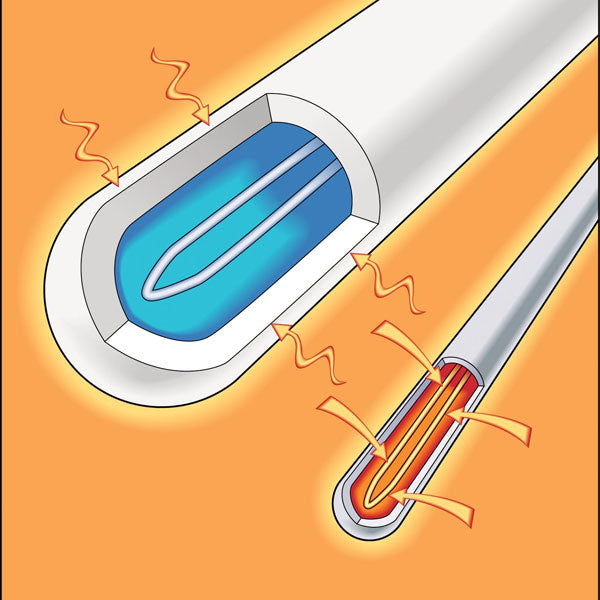

|Skutt Kilns use a Type K |
(Type S Upgrade Available)

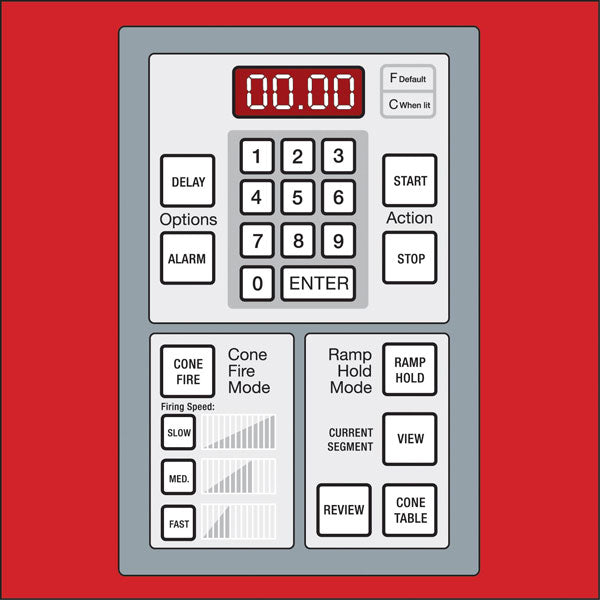

|Skutt Kilns use a Bartlett |
controller that is easy to use
and has built in programs to
get you firing right away.
|Plan your kiln room design and |
layout. If you need additional information
take a look at the PDF downloads above
for a link to the Skutt Kiln catalog and
the Architectural Specifications.
