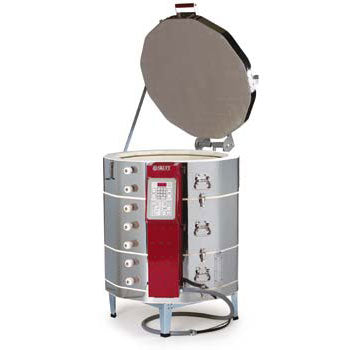

Skutt KM1231-3 PK Kiln Master Kiln
- Free Shipping
- Kiln Shipping
All kilns ship free!
Smaller kilns ship via UPS Ground and larger kilns ship via truck.
Skutt KMT Touchscreen Controller !
After years of refinement Skutt Kilns is rolling out the new Touchscreen Controller...and it is NICE!
After over two years of research, development and rigid testing, the new Touchscreen controller is now available on new Skutt KilnMaster (KMT) and GlassMaster Kilns (GMT). You can even retrofit existing units with an easy to install Upgrade Kit specifically made for the GlassMaster GMT or KilnMaster KMT.
About the Skutt KM1231
Here is the high volume Cone 10 power you've been looking for.
Finally, an electric kiln line designed specifically for volume production and fast turnaround of high mass loads. It has the power and industrial components to go straight to Cone 10 with a full load of tile or stoneware – no slow struggling to reach the final temperature. The standard KilnMaster controller gives you the options of Cone Firing, or selecting your own 8-segment Ramp/Hold firing programs. The combination of direct wiring, heavy duty elements, connectors and relays, plus traditional Skutt stainless steel and firebrick construction results in a kiln that will last for years of constant use. Among the most powerful on the market today, the line was designed at the request of Skutt customers.
The Skutt KM-1231PK kiln includes the KilnMaster controller built in. Other standard features include:
- 2 Year limited warranty, elements excluded
- Encapsulate Type K thermocouple
- Mercury Relays
- Industrial gauge wiring
- Compression connectors on feeder wires
- Larger, swing away air cooled switch box
- Multi-sided design
- Stainless steel jacket
- Sectionalized construction
- Two lift handles on each section
- Sealed, dust free lid with full-floating hinge
- Three types of exposed, pinned elements for optimum balance
- Reversible top and bottom slabs
- Stand included
- Peep plugs included
- UL Listing
The New Skutt Lid LifterThe New Lid Lifter makes Skutt 10 and 12-sided lids some of the lightest on the market. In fact you can now lift them with just a finger. The lid brace has been redesigned for added strength and now has 2 positions. The innovative Center Pivot Design distributes the force on the lid across 2 points as opposed to only one.
It ships fully assembled on the kiln. Unlike some other brands there is no awkward loading of the springs required. The kiln remains completely sectional for moving and repairs. The lid can be effortlessly and safely detensioned by simply raising the lid and sliding out the tension rod. It really is that easy!
|Electrical Specifications - Skutt KM1231-3PK|
|Phase||Voltage||Amps||Max. Cone||Cu. Ft.||Opening||Depth||Shipping Weight||Copper Wire Size||Breaker Size||NEMA Receptacle|
|1||240||72||10||11.6||28.13"||31"||450||3||90||Direct Wire |
|3||240||44.5 ||10||11.6||28.13"||31"||450||6||60||Direct Wire|
|3||208||51.5 ||10||11.6||28.13"||31"||450||4||70||Direct Wire|

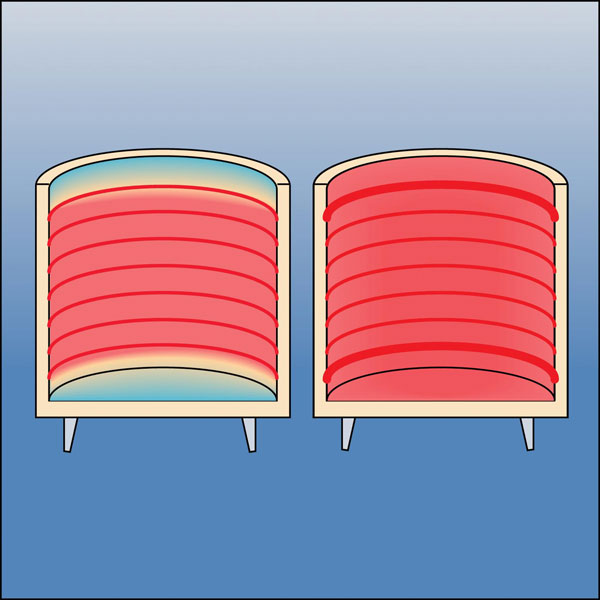

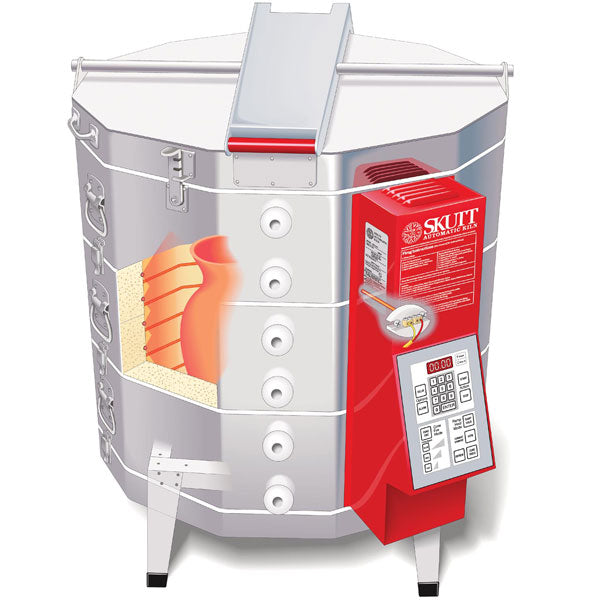

|Skutt Kiln Cutaway||Larger Skutt Kilns use balanced |
elements top to bottom so your
kiln fires more evenly.

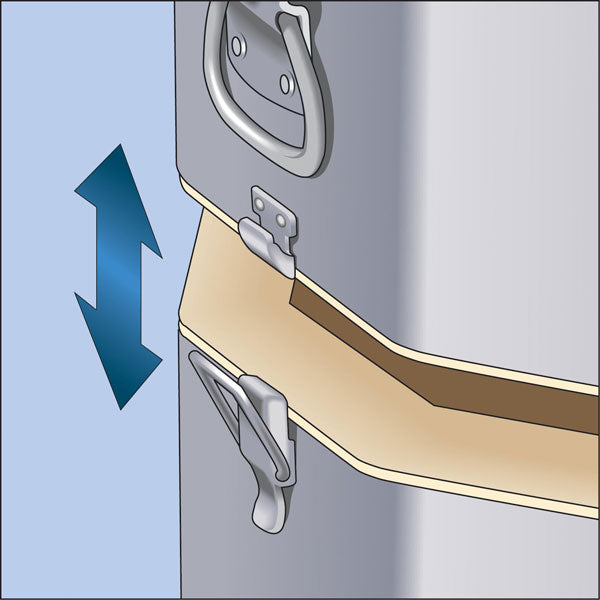

|Skutt Kilns use a sectional |
design to make them easy to
move and disassemble.

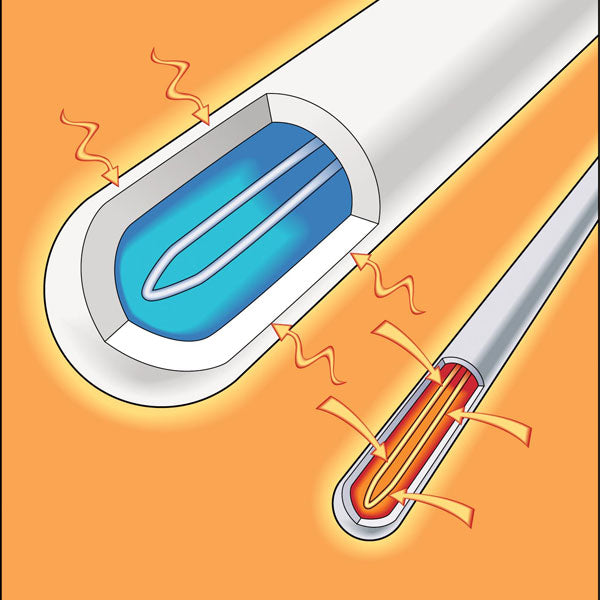

|Skutt Kilns use a Type K |
(Type S Upgrade Available)

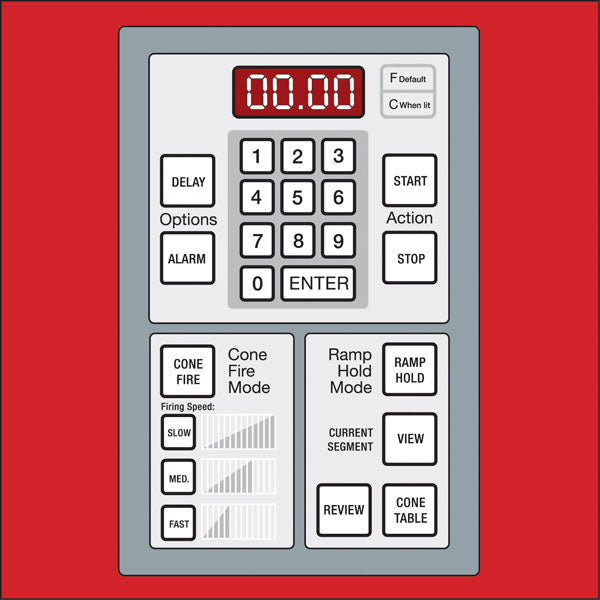

|Skutt Kilns use a Bartlett |
controller that is easy to use
and has built in programs to
get you firing right away.
|Plan your kiln room design and |
layout. If you need additional information
take a look at the PDF downloads above
for a link to the Skutt Kiln catalog and
the Architectural Specifications.
