Skutt KM1022-3 Kiln Master Kiln Kiln
All kilns ship free!
Smaller kilns ship via UPS Ground and larger kilns ship via truck.
Skutt KMT Touchscreen Controller !
After years of refinement Skutt Kilns is rolling out the new Touchscreen Controller...and it is NICE!
After over two years of research, development and rigid testing, the new Touchscreen controller is now available on new Skutt KilnMaster (KMT) and GlassMaster Kilns (GMT). You can even retrofit existing units with an easy to install Upgrade Kit specifically made for the GlassMaster GMT or KilnMaster KMT.

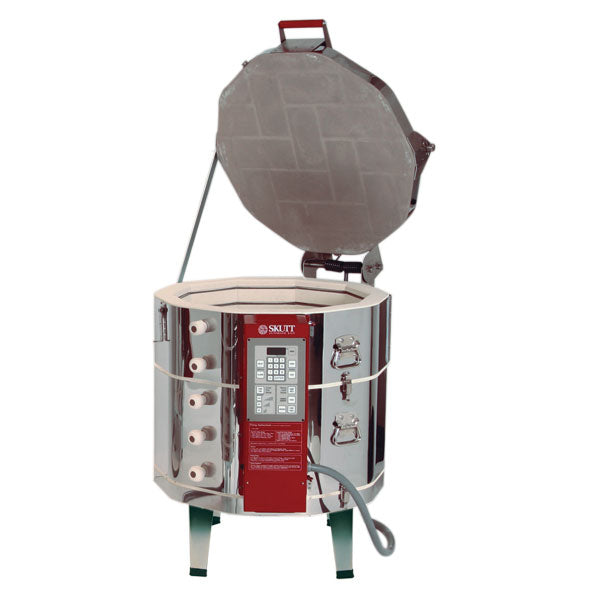

About the Skutt KM1022-3
Fits most tall pots and easy to load plus the 3" brick makes this a more efficient choice than the KM1022
Part of the New 22” Series, the KM1022-3 was introduced to combine the benefits of the easy to load KM1018 and the desirable height of the KM1027. At 22” deep, it has a chamber that is 4.5” taller than its predecessor, the KM1018. This makes it possible to fire an 18” tall vase with all the proper clearances. It comes equipped with the precise control of the KilnMaster Controller making it easy and convenient to operate. Like all other Skutt 10 sided kilns, the spring-loaded Lid Lifter is included at no extra charge. Also available in model KM1022 with 2.5" thick brick.
The Skutt KM-1022-3 kiln includes the KilnMaster controller built in. Other standard features include:
- 2 Year limited warranty, elements excluded
- 3" brick standard
- Encapsulated Type K thermocouple
- Crimp on connectors on feeder wires
- Larger, swing away air cooled switch box
- Multi-sided design
- Stainless steel jacket
- Sectionalized construction
- Two lift handles on each section
- Sealed, dust free lid with full-floating hinge
- Two types of exposed, pinned elements for optimum balance
- Reversible top and bottom slabs
- Stand included
- Peep plugs included
- UL Listing
The New Skutt Lid LifterThe New Lid Lifter makes Skutt 10 and 12-sided lids some of the lightest on the market. In fact you can now lift them with just a finger. The lid brace has been redesigned for added strength and now has 2 positions. The innovative Center Pivot Design distributes the force on the lid across 2 points as opposed to only one.
It ships fully assembled on the kiln. Unlike some other brands there is no awkward loading of the springs required. The kiln remains completely sectional for moving and repairs. The lid can be effortlessly and safely detensioned by simply raising the lid and sliding out the tension rod. It really is that easy!
|Electrical Specifications - Skutt KM1022-3|
|Phase||Voltage||Amps||Max. Cone||Cu. Ft.||Opening||Depth||Shipping Weight||Copper Wire Size||Breaker Size||NEMA Receptacle|
|1||240||48||10 ||5.25||22.38"||22"||298 ||6||60||6-50 |
|1||208||48||10 ||5.25||22.38"||22"||298||6||60||6-50 |
|3||240||34.6 ||10 ||5.25||22.38"||22"||298||8||40||15-50 |
|3||208||34.6 ||10 ||5.25||22.38"||22"||298||8||40||15-50 |

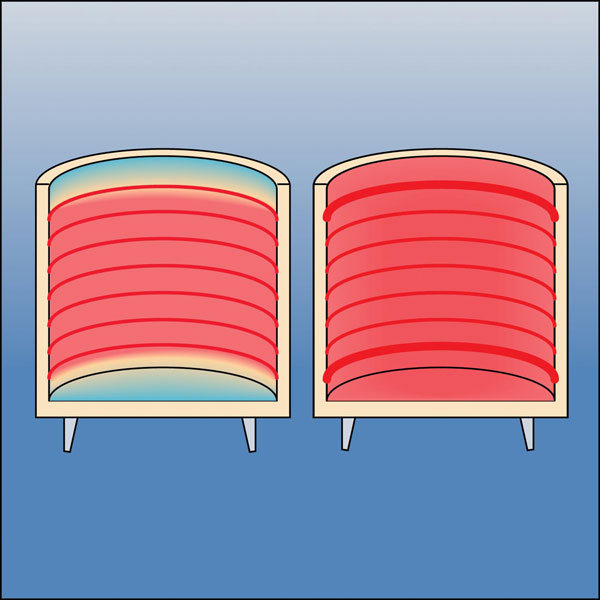

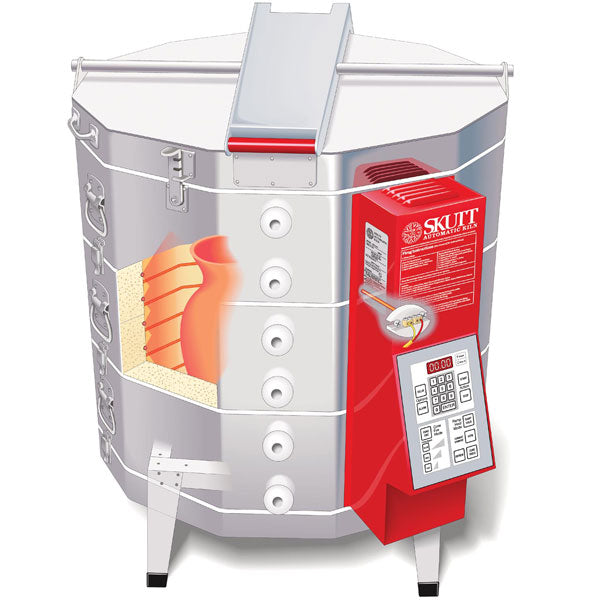

|Skutt Kiln Cutaway||Larger Skutt Kilns use balanced |
elements top to bottom so your
kiln fires more evenly.

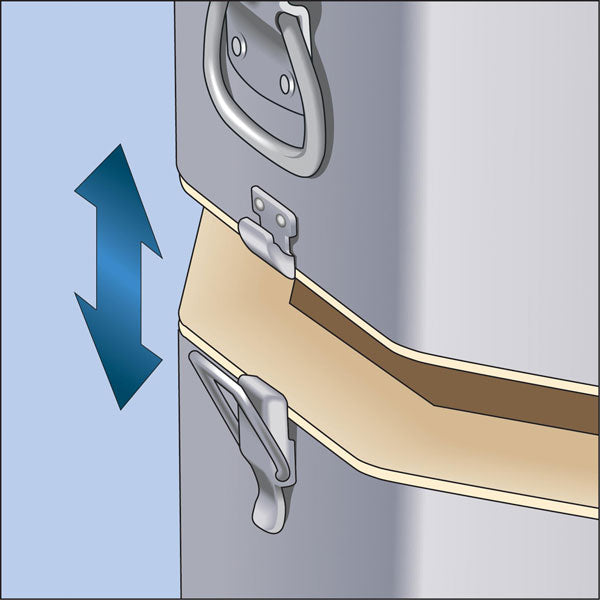

|Skutt Kilns use a sectional |
design to make them easy to
move and disassemble.

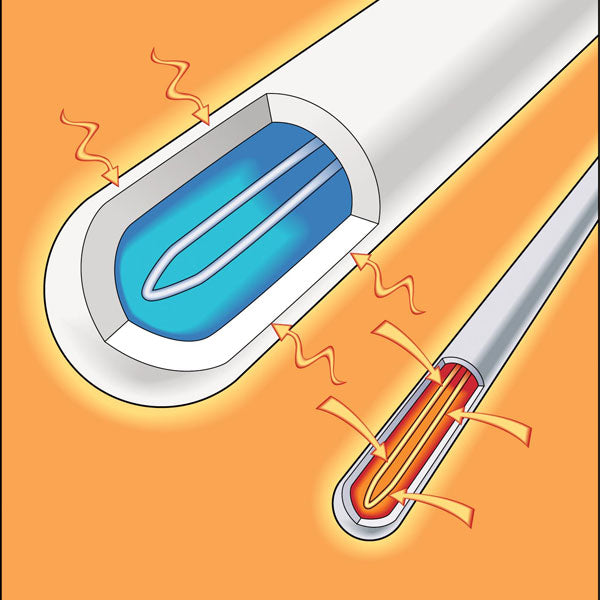

|Skutt Kilns use a Type K |
(Type S Upgrade Available)

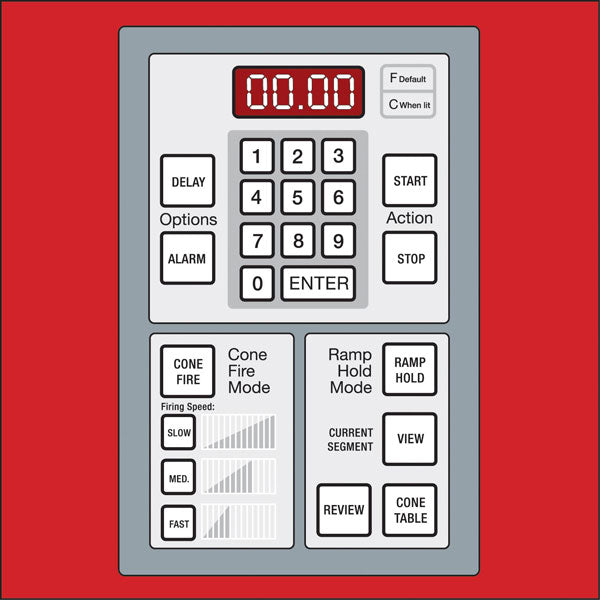

|Skutt Kilns use a Bartlett |
controller that is easy to use
and has built in programs to
get you firing right away.
|Plan your kiln room design and |
layout. If you need additional information
take a look at the PDF downloads above
for a link to the Skutt Kiln catalog and
the Architectural Specifications.
