Skutt Element for KS818P, KS818PWR, 183, 183-27

$44.00
Maximum quantity available reached.
Sku: 1000100
Product Description

Wiring Diagram for KS818, KS818WR, KS818P, KS818PWR

Element Installation Instruction Sheet

Replacing an element in Skutt Kilns – Instructions from KilnParts.com – Includes Pictures

Changing an Element

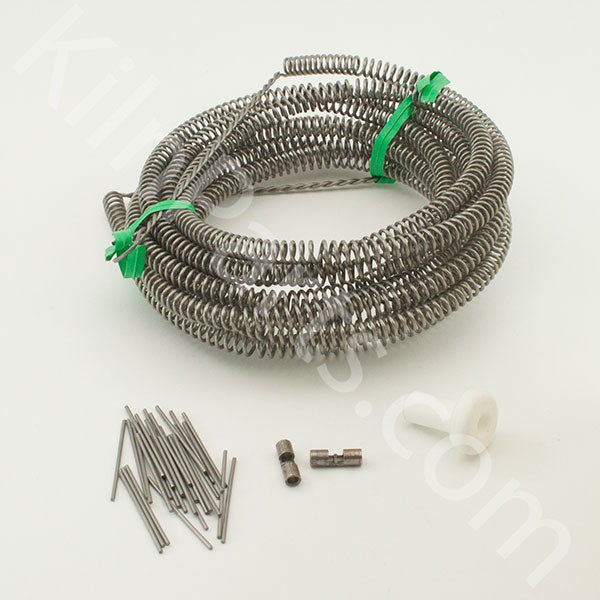

All elements sold at KilnParts.com are original factory elements made by Skutt Ceramics, Inc. These are NOT after market elements. The element package contains; one element, two crimp on barrell connectors, straight pins, one replacement porcelain insulator and printed instructions.

If your firing times are taking longer than they used to or you are almost reaching temperature but getting an "ERR1" message on your automatic Skutt kiln it's probably time to change your elements.

A few signs your elements need to be replaced:
- The coils that make up your elements are slumped over and bunched up in the brick channels.
- The resistance of your elements is more than 1.5 ohms over the factor spec. For information about how to test resistance download this PDF. Once you know that take a look at the KM Resistance and the KS Resistance sheets.
- You can see a visible break in an element.
- Your automatic kiln shows an "ERR1" after firing but comes very close to it's target temperature.

If you're not sure whether or not your kiln needs new elements take a few minutes to watch some videos about diagnossing common kiln problems here.

If you prefer to read about diagnostic tests take a look at our PDF library here. You will find useful information in the "Diagnostic Tests" and "Troubleshooting" sections.

Voltage, Phase and Position Skutt Part Numbers Krueger Pottery Supply Part Numbers
240V 1PH – All Positions 0272 1000100
208V 1PH – All Positions 1382 1000101



KS818P, KS818PWR*, 183, 183-27* - All Voltages
Element Type Position (top down) Quantity Required
All 1,2,3,4 4
*Kilns with Wired Rings (WR code on newer models and -27 on older models) add 2 additional elements to make a full set except model 145WR which has one additional element.
